 The product shown in the photo may differ from the actual product.
|
|
103M89332-3540 Specifications
| Motor dimensions | 106mm(4.17inch) cir | |
| Motor length | mm | 163.3 |
| inch | 6.4 | |
| Rated Frequency | Hz | 100 |
| Rated Speed | min-1 | 120 |
| Rated Torque | N·m | 2.9 |
| oz·in | 410.6 | |
| Rated Current | A | 0.5 |
| Rotor Inertia | ×10-4kg·m2 | 14.6 |
| ×10-oz-in-s2 | 20.0 | |
| Mass | kg | 7.4 |
| lbs | 16.3 | |
| Allowable Thrust Load | N | 100 |
| lbs | 22.5 | |
| Allowable Radial Load | N | 392 |
| lbs | 88.1 | |

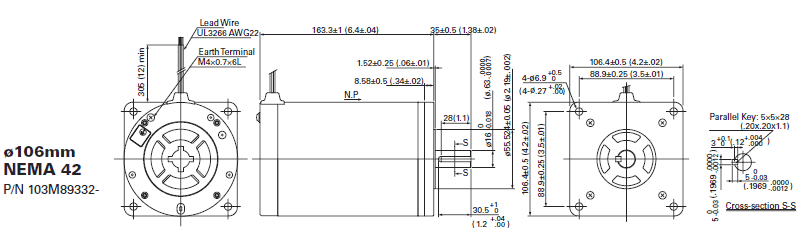

Motor Dimensions
Motor Characteristics
