 The product shown in the photo may differ from the actual product.
|
|
103M8331-2540 Specifications
| Motor dimensions | 86mm(3.39inch) cir | |
| Motor length | mm | 62.15 |
| inch | 2.45 | |
| Rated Frequency | Hz | 60 |
| Rated Speed | min-1 | 72 |
| Rated Torque | N·m | 0.9 |
| oz·in | 127.4 | |
| Rated Current | A | 0.11 |
| Rotor Inertia | ×10-4kg·m2 | 1.6 |
| ×10-oz-in-s2 | 2.2 | |
| Mass | kg | 1.55 |
| lbs | 3.4 | |
| Allowable Thrust Load | N | 60 |
| lbs | 13.5 | |
| Allowable Radial Load | N | 224 |
| lbs | 50.4 | |

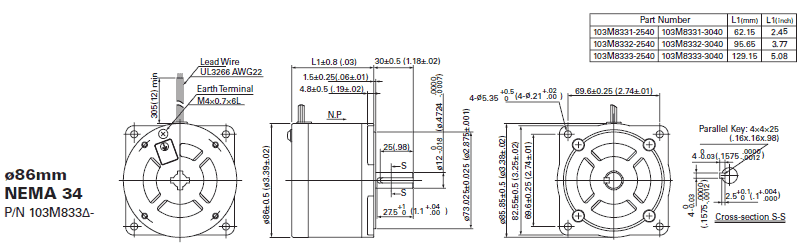

Motor Dimensions
Motor Characteristics
