The product shown in the photo may differ from the actual product. 5-Phase Stepping Driver F P-type  ( Positioning-function-included type ) FP1W075P00   AC100V to 230V Micro step Combination Motors

Feature Reduces 80% of vibration. Auto-micro function and micro-stepping function can reduce vibration by 80% as compared to our conventional products. Reduces cycle time Reduction of response time by 10% (compared to our conventional products) allows cycle time of the device to be reduced when the same operation is repeatedly performed. Reduces space for control panel Volume is reduced by 50% (compared to our conventional products). Easier maintenance 2-digit LED with 7 segments can display the system¡Çs status and alarms for troubleshooting and recovery of the system. Test Operations (JOG Functions) Built-in JOG functions can be used to check connections between motor and driver enabling test operations without having to enter position or speed commands. Positioning by General-purpose I/O System can be easily positioned by specifying a program number via general-purpose I/O from an upper-level controller (PLC, etc.). Encoder I/F Control Step-out detection can be performed by connecting to a motor encoder. 500 P/R (1000/2000 multiplication function) line-driver system Conforms to International Standards Standard specifications of F-series stepping drivers comply with UL, CSA, and EN international standards. Sanyo Denki provides stepping motors conforming to UL and EN international standards and EMC filters satisfying EMC directives. Laptop-based Setup Monitor Parameter and program settings can be made with setup software.

Basic specifications
Power supply	Single phase AC100V to 230V +10, -15% 50/60Hz
Source current	4A
Protection class	CLASS I
Operation environment	Installation category (over-voltage category): ­¶  pollution degree: 2
Applied standards	EN50178, UL508C
Ambient operation temperature	0 to +50°C
Storage temperature	-20 to +70°C
Ambient operation humidity	35 to 85% RH (no condensation)
Storage humidity	10 to 90% RH (no condensation)
Operation altitude	1000 m (3280 feet) or less above sea level
Vibration resistance	Tested under the following conditions; 4.9m/s2, frequency range 10 to 55Hz, direction along X, Y and Z axes, for 2 hours each.
Impact resistance	Not influenced at NDS-C-0110 standard section 3.2.2 division"C"
Withstand voltage	Not influenced when 1500V AC is applied between power input terminal and cabinet for one minute.
Insulation resistance	10M Ω MIN. when measured with 500V DC megohmmeter between input terminal and cabinet.

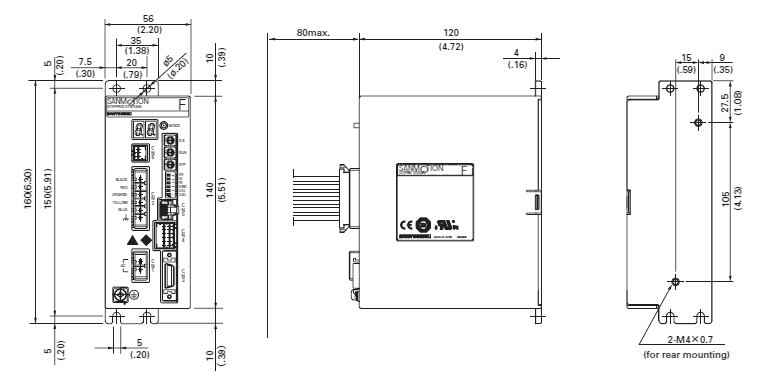

Mass	0.8kg (1.77lbs)
Functions
Protection functions	Driver overheating, main circuit power supply error, and over- current
LED indication	Power monitor, phase origin monitor, pulse motion, and alarm.

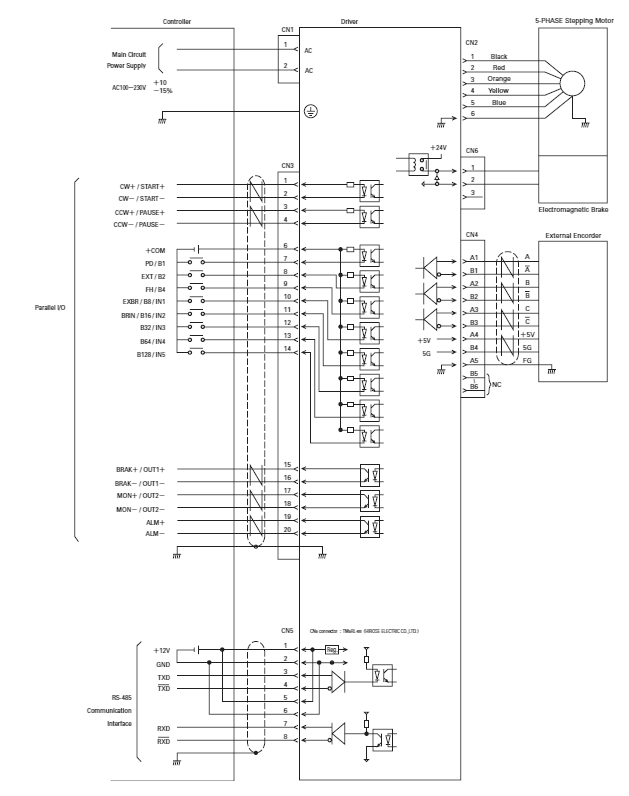

CN3
Input signal	Pohto-coupler input system; input resistance: 220 Ω; input-signal "H" level: 4.0-5.5V; input-signal "L"level: 0-0.5V
Output signal	Pohto-coupler input system; input resistance: 220 Ω; input-signal "H" level: 4.0-5.5V; input-signal "L"level: 0-0.5V

AC power cable
Model No. L:m(feet) PM-C03P1000-05 10(32.8) PM-C03P0500-05 5(16.4) PM-C03P0300-05 3(9.84) PM-C03P0100-05 1(3.28)
Housing 1-178128-2 (AMP) Contact 1-175218-5 (AMP) Round-type crimp tool 1.25M4 (J.S.T. Mfg Co.) Cable 600V vinyl cab tire cable 3-wire AWG16(1.25mm2[0.05inch2])

Motor cable
Model No. L:m(feet) PM-C06M1000-11 10(32.8) PM-C06M0500-11 5(16.4) PM-C06M0300-11 3(9.84) PM-C06M0100-11 1(3.28)
Housing 1-178128-6 (AMP) Contact 1-175218-5 (AMP) Cable 600V vinyl cab tire cable 6-wire AWG18(0.75mm2[0.03inch2])

I/O signal cable
Model No. L:m(feet) PM-C20S0200-01 2(6.56) PM-C20S0100-01 1(3.28)
Shell 1032052A0-008¡Ê3M¡Ë Plug 10120-3000VE¡Ê3M¡Ë Cable 10-pair PVC shielded cable AWG28¡Ê0.08mm2[0.032inch2]¡Ë

Cable for brake use
Model No. L:m(feet) PM-C03B1000-01 10(32.8) PM-C03B0500-01 5(16.4) PM-C03B0300-01 3(9.84) PM-C03B0100-01 1(3.28)
Housing 1-1318120-3(AMP) Contact 1318107-1(AMP) Cable PVC cable AWG22¡Ê0.3mm2[0.0118inch2]¡Ë

Cable for encoder use
Model No. L:m(feet) PM-C12S1000-01 10(32.8) PM-C12S0500-01 5(16.4) PM-C12S0300-01 3(9.84) PM-C12S0100-01 1(3.28)
Housing 1-1318118-6(AMP) Contact 1318107-1(AMP) Cable 4-pair PVC shielded cable AWG24¡Ê0.2mm2[0.0079inch2]¡Ë

28mm(1.10inch) sq 42mm(1.65inch) sq  motor auxiliary connectors
		PM-AP-074 Conform motor dimensions
Corresponding housing type Corresponding contact type AC power connector 1-178128-2(AMP) 1-175218-5(AMP) Motor connector 1-178128-6(AMP) 1-175216-5(AMP) I/O signal connector 10320-52A0-008(3M) 10120-3000VE(3M)

60mm(2.36inch) sq 86mm(3.39inch) cir  motor auxiliary connectors
		PM-AP-073 Conform motor dimensions
Corresponding housing type Corresponding contact type AC power connector 1-178128-2(AMP) 1-175218-5(AMP) Motor connector 1-178128-6(AMP) 1-175217-5(AMP) I/O signal connector 10320-52A0-008(3M) 10120-3000VE(3M)

106mm(4.17inch) cir  motor auxiliary connectors
		PM-AP-072 Conform motor dimensions
Corresponding housing type Corresponding contact type AC power connector 1-178128-2(AMP) 1-175218-5(AMP) Motor connector 1-178128-6(AMP) 1-175218-5(AMP) I/O signal connector 10320-52A0-008(3M) 10120-3000VE(3M)
